TOTAKU DUCT-EE

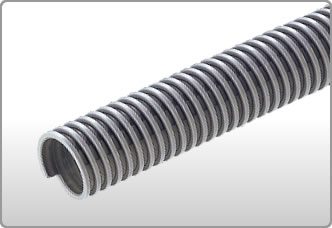

TOTAKU DUCT-EE Picture
  • Structural drawing
  • Printing page

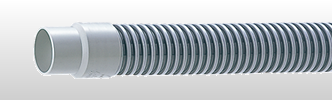

Example of caffs inatallation
(It doesn't keep completely airtight and watertight）

Features
Spread type of TOTAKU DUCT-D.
There is little internal resistance compared with TOTAKU DUCT-D, and good transportation ability is obtained.
Lightness and Flexibility enable labor-saving.
Easy to cut and install, easy connection
Applications
For indoor ducting and blowers.
For ducting and blowers for factory equipment.
Additionally, for dust collection and air supplying exhaust.
Fluid Water・hot water、Air (blower)
Material PVC
Temperature -10 ～ 50
Function ･Duct (blower)

STANDARD DIMENSIONS AND PROPERTIES

Nominal
diameter		 Inside
Diameter
mm		 Outside
Diameter
mm		 Pitch

mm		 Weight
(reference)
g/m		 L/coil

m		 Allowable pressure
(at room temperature)
MPa{kgf/cm2｝		 Allowable decompression power
（at room temperature）
kPa{mmHg}		 Allowable
bending radius
mm
32｛1¼｝ 32.4 38.6 8.4 220 50 0.06｛0.6｝ -66.0｛-495｝ 32
38｛1½｝ 37.3 44.5 9.2 295 38
50｛2｝ 50.6 60.2 10.0 585 30 0.05｛0.5｝ 50
65｛2½｝ 62.4 72.0 12.0 645 0.04｛0.4｝ 65
※75｛3｝ 76.4 86.4 13.0 775 -33.0｛-248｝ 75
※90｛3½｝ 88.9 99.5 13.5 945 0.03｛0.3｝ 90
※100｛4｝ 101.6 112.2 15.0 1020 -21.5｛-161｝ 100
※115｛4½｝ 114.3 125.9 17.4 1255 20 -20.0｛-150｝ 110
125｛5｝ 125.9 138.7 21.0 1350 0.02｛0.2｝ 125
150｛6｝ 152.4 164.8 20.0 1670 -14.5｛-109｝ 150
※165｛6½｝ 165.0 177.8 22.0 1770 -10.0｛-75｝ 150
175｛7｝ 177.8 190.6 20.0 1935 175
200｛8｝ 203.7 217.1 22.5 2190 0.01｛0.1｝ -6.0｛-45｝ 200
225｛9｝ 227.0 240.4 23.5 2440 10 -5.5｛-41｝ 225
250｛10｝ 252.0 266.2 25.0 2950 -4.5｛-34｝ 250
275｛11｝ 278.0 292.6 28.0 3150 -4.0｛-30｝ 275
300｛12｝ 303.0 318.0 30.0 3480 -3.0｛-23｝ 300

Sizes marked ※ can be connected to steel pipes.
