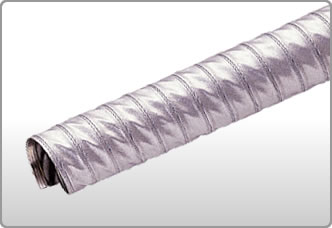

- With specially coated glass-cloth and stainless-steel sheets (SUS304) as a reinforcing core, this can be used at 250℃ or less.
- Stretchable and easy for placing, storing and transporting
- Specially coated glass-cloth is good for flame-retarding.(Acceptable product for flame prevention, first class)
- For suction ducts of equipment for producing and circulating hot wind, sparks of electric/gas welding and sparks of grinders, etc
| Fluid | Air (blower) |
|---|---|
| Material | Other (specially coted glass-cloth) |
| Temperature | -20 ～ 250 |
| Function | ･Duct (blower) ･Heat resistant |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Weight (reference) g/m |
L/coil m |
Allowable pressure (at room temperature) MPa{kgf/cm2｝ |
Allowable decompression power (at room temperature) kPa{mmHg｝ |
Allowable bending radius mm |
|---|---|---|---|---|---|---|---|
| 50｛2｝ | 51.0 | 54.5 | 360 | 5 | 0.007｛0.07｝ | -8.5 {-64} | 110 |
| 65｛2½｝ | 67.0 | 71.5 | 480 | -8.0 {-60} | 140 | ||
| 75｛3｝ | 76.0 | 80.0 | 525 | -7.0 {-53} | 160 | ||
| 90｛3½｝ | 91.0 | 94.5 | 545 | -6.5 {-49} | 190 | ||
| 100｛4｝ | 102.5 | 106.0 | 635 | -6.5 {-49} | 210 | ||
| 125｛5｝ | 127.5 | 131.0 | 770 | -6.0 {-45} | 250 | ||
| 150｛6｝ | 152.5 | 155.5 | 910 | -4.0 {-30} | 280 | ||
| 175｛7｝ | 176.5 | 180.0 | 1165 | -4.0 {-30} | 340 | ||
| 200｛8｝ | 202.0 | 205.0 | 1240 | -3.0 {-23} | 380 | ||
| 250｛10｝ | 253.0 | 256.0 | 1570 | -3.0 {-23} | 510 | ||
| 300｛12｝ | 303.5 | 306.5 | 1905 | -3.0 {-23} | 610 |
| Nipple for duct （cuffs） |
|---|
| Bands & Swaging |
