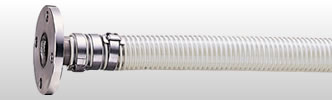

Example of coupling installation
- No taste and scentless, good for transporting foodstuffs
- Consists of plasticizer of a non-phthalic acid system, conforming to Notification of Ministry of Health, Labour and Welfare No.267 dated August 1st, 2003.
- Can transport fat or fatty foodstuffs (Completely conforms to Notification of Ministry of Health, Labour and Welfare No.201)
- For transportation of Sake, Liquor, Beer, and Soft-drinks
- Additionally, for transportation of other foodstuffs.
- For transportation of kerosene, light oil, equipment oil, etc.
- For suction/delivery.
- ※ In the case of transporting powdered foodstuffs, please put earth wire (such as copper wire) around the outside of the Hose, and connect the wire to an earth-cable.
- ※ After using the hose, please take care to not leave organic solvents (such as high concentration alcohol) inside the hose.
| Fluid | Water・hot water、Food、Oils |
|---|---|
| Material | PVC |
| Temperature | -10 ～ 50 |
| Function | ・Conforms to Ministry of Health,Labour and Welfare Notifications ・Oil resistant ・Having transparency ・Low odor ・Pressure resistant 0.5MPa (5.1kgf/㎠) |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Weight(reference) g/m |
L/coil m |
Allowable pressure(at room temperature) MPa｛kgf/cm2｝ |
Allowable bending radius mm |
|---|---|---|---|---|---|---|
| 25｛1｝ | 25.4 | 31.2 | 340 | 50 | 0.50｛5.1｝ | 240 |
| 32｛1¼｝ | 32.0 | 39.2 | 510 | 0.45｛4.6｝ | 340 | |
| 38｛1½｝ | 38.0 | 46.0 | 650 | 0.40｛4.1｝ | 350 | |
| 50｛2｝ | 50.8 | 61.0 | 1120 | 0.40｛4.1｝ | 500 | |
| 65｛2½｝ | 63.5 | 74.8 | 1525 | 20・50 | 0.40｛4.1｝ | 600 |
| 75｛3｝ | 76.2 | 88.0 | 1885 | 0.40｛4.1｝ | 775 | |
| ◎90｛3½｝ | 88.9 | 100.5 | 2190 | 20 | 0.30｛3.1｝ | 1065 |
| 100｛4｝ | 101.6 | 115.8 | 3080 | 0.30｛3.1｝ | 1150 | |
| ◎125｛5｝ | 127.0 | 141.0 | 3660 | 0.25｛2.5｝ | 1600 | |
| ◎150｛6｝ | 152.4 | 167.8 | 5000 | 0.20｛2.0｝ | 1900 |
◎印のサイズ、及びアース線入りは、受注生産品です。
詳しくは弊社までお問い合わせください。
