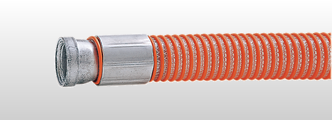

Example of coupling installation .1

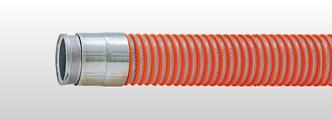

Example of coupling installation .2

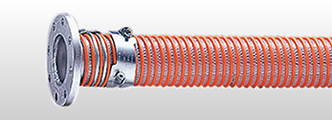

Example of coupling installation .3
- The pressure resistant type of TOTAKU SD.
- With reinforcing fiber, withstands a maximum working pressure of 0.50MPa{5.1 kgf/㎠}.
- For suction/delivery
- For the beginning of water pumps, high-elevation,hoisting, and so on
- For suction of dumper-cars
| Fluid | Water・hot water |
|---|---|
| Material | PVC |
| Temperature | -10 ～ 50 |
| Function | ・Pressure resistant ≪0.5MPa (5.1kgf/㎠)≫
・Having transparency |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Pitch mm |
Weight (reference) g/m |
L/coil m |
Allowable pressure (at room temperature) MPa{kgf/cm2｝ |
Allowable bending radius mm |
|---|---|---|---|---|---|---|---|
| 25｛1｝ | 25.4 | 34.9 | 7.5 | 400 | 50 | 0.50｛5.1｝ | 105 |
| 32｛1¼｝ | 32.0 | 42.5 | 8.5 | 520 | 120 | ||
| 38｛1½｝ | 38.0 | 48.8 | 9.0 | 680 | 150 | ||
| 50｛2｝ | 50.8 | 63.4 | 10.0 | 950 | 225 | ||
| 65｛2½｝ | 63.5 | 78.5 | 14.3 | 1305 | 20・50 | 270 | |
| ※75｛3｝ | 76.2 | 92.0 | 15.1 | 1635 | 375 | ||
| ※100｛4｝ | 101.6 | 120.0 | 16.4 | 2620 | 540 | ||
| 125｛5｝ | 125.9 | 152.5 | 22.0 | 4220 | 20 | 630 | |
| 150｛6｝ | 151.4 | 180.0 | 24.0 | 5860 | 780 | ||
| 200｛8｝ | 203.7 | 237.0 | 28.0 | 8590 | 10 | 1200 | |
| 250｛10｝ | 254.0 | 295.0 | 32.0 | 13540 | 5 | 0.25｛2.5｝ | 1890 |
| 300｛12｝ | 304.8 | 347.0 | 34.0 | 16260 | 2190 |
The size of the mark ※ can be directly connected with a steel pipe.

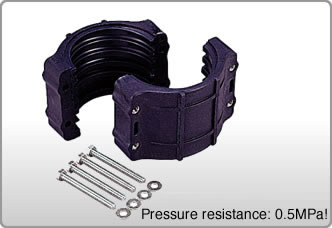

- It is lightweight due to being made by the resin.of the weight of metal couplings.
- Allowable pressure of LINE ACE with which SHIMETAC is connected is equal to that of the hose only.
- Attaching and detaching work of the couplings on the job site is easy.
- It doesn't rust due to being made by the resin.
- Has a high durability. (Proven upon the repeating pressure test) SHIMETAC was installed at both ends of LINE ACE placed in a straight form, and then 0-0.5MPa pressure was repeatedly applied to them in every 20 seconr-cars.Result：100,000 times for all sizes, with no trouble.
- Nominal Dia. of 38, 50, 65, 75 and 100mm are available.

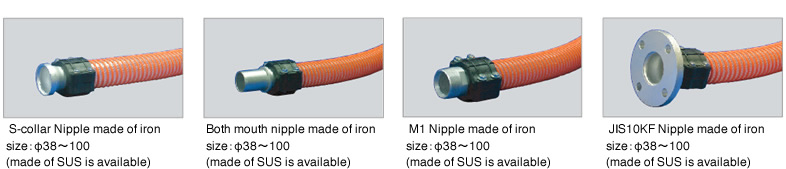

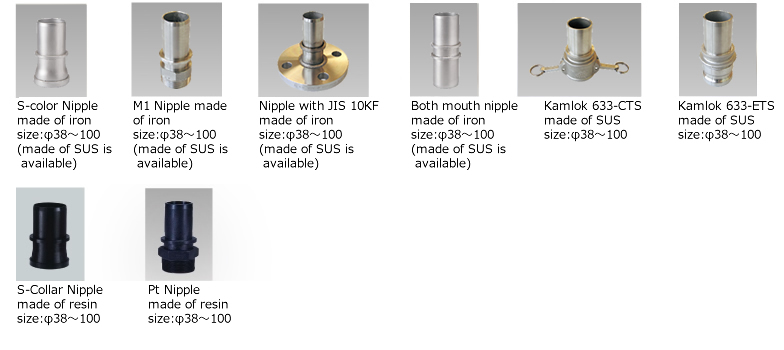

(Note)PT Nipple made of the resin is available only in sizes of 38 and 50mm. - Besides the newly released PT Nipple and S Collar Nipple (both made of plastic), Nipple with JIS10KF (made of iron or SUS), M1 Nipple, S-Collar Nipple, G-Collar Nipple and Both Mouth Nipple (made of iron) are available as special order items.

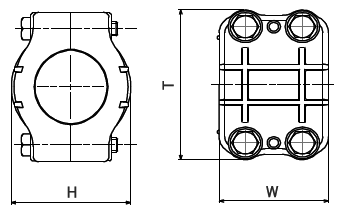

| Nominal diameter |
T | W | H | Bolt size |
|---|---|---|---|---|
| 38 | 85 | 58 | 66 | M8 |
| 50 | 104 | 63 | 81 | M8 |
| 65 | 120 | 77 | 94 | M8 |
| 75 | 135 | 88 | 108 | M8 |
| 100 | 164 | 105 | 136 | M8 |
(Unit:mm)
