- Can be used for oils and fats, fat-related foods and general foods, conformed to Foods.Conformed to “Food Sanitary Law, Notification of Ministry of Health, Labour and Welfare No.201” （All items including heptanes）.
- Can be washed by hot water (100℃ or less)
- Hygienic, can be cleaned with hot water (100℃ or less), with 95% Ethanol.
- Can be incinerated by fire after use, no noxious gas※ is generated (ash less than 0.1%).

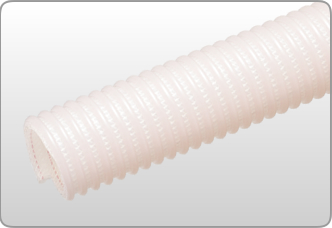

- Translucent wall enables visual check of the material flow.
- With reinforcing fiber, can withstand pressure Max.0.7Mpa (7.1kgf/cm²).
- Lightness enable the hose to float on water.
- ※1.Hydrogen chloride, SOx, NOx, Hydrogen cyanide, and Ammonia.
- For transportation of food oil, alcoholic drinks such as Sake, Liquor, soft drinks, etc （Liquid and powder conveying）
- Clean piping system as transporting pure water
- For transportation for hot water （100℃ or less）.
- Note） About the pressure resistance on the condition more than 50℃, please confirm the following chart.
- Note）
| Nominal diameter |
Allowable pressure （50〜100℃） |
|
|---|---|---|
| MPa | kgf/cm² | |
| 25｛1｝ | 0.40 | 4.1 |
| 38｛1½｝ | 0.40 | 4.1 |
| 50｛2｝ | 0.30 | 3.1 |
- Please keep that the using temperature range is from 0 to 100℃.
- By the using temperature or the method of attachment, the value of the pressure resistance may vary.
- ■CAUTIONS
※ Please avoid the use and storage over the long period of time in the outdoors.
| Fluid | Water・hot water、Food、Chemical (including pure water）、Oils |
|---|---|
| Material | Non-PVC |
| Temperature | 0 ～ 100 |
| Function | ・Conforms to Ministry of Health,Labour and Welfare Notifications ・Excellent madical durability ・Having transparency (translucent) ・Low odor ・Can be incinerated by fire after use ・Heat resistant (not more than 100℃) |

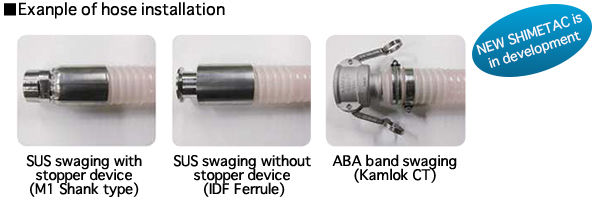

Pressure-resistant performance （at 100℃）
| Nominal diameter |
Installation method | ||
|---|---|---|---|
| SUS swaging with stopper device | SUS swaging without stopper device | Band swaging | |
| 25｛1｝ | — | 0.40 | 0.10 |
| 38｛1½｝ | 0.40 | 0.20 | 0.10 |
| 50｛2｝ | 0.30 | 0.20 | 0.10 |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Pitch mm |
Weight (reference) g/m |
L/coil m |
Allowable pressure (at room temperature) MPa{kgf/cm2｝ |
Allowable bending radius mm |
|---|---|---|---|---|---|---|---|
| 25｛1｝ | 25.4 | 38.6 | 7.5 | 460 | 20・50 | 0.7｛7.1｝ | 120 |
| 38｛1½｝ | 38.0 | 55.0 | 10.0 | 850 | 240 | ||
| 50｛2｝ | 50.8 | 69.0 | 11.0 | 1210 | 300 |
