※ Please use the material for smooth surface if hose is corrugated outer surface.

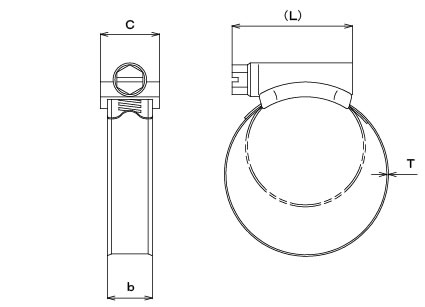

Calling	Use range	(L)	c	b	T	Recommendation tightening torque		Material
Calling	Use range	(L)	c	b	T	SS･SUS304	SUS306	Material
8-14	8-15	19.5	12	9	0.8	2.5-3.5		SS or SUS316
11-17	10-17（11-18）	19.5				2.5-3.5
13-20	12-22（13-21）	21.5				3-4
15-24	15-25	21.5	17	12		4-5	2.5-3.5	SS or SUS304 or SUS316
19-28	19-29	23.5
22-32	22-33	25.5
26-38	26-39	25.5					3.5-4.5
32-44	32-45	29.5			SS:1.0 SUS:0.8	5-6
※32-50	32-51
38-50	38-51
44-56	44-57
※40-60	40-61
50-65	50-66	32.5
※50-70	50-71
58-75	58-76
※60-80	60-81
68-85	68-86
※70-90	70-91
77-95	77-96
※80-100	80-101
87-112	87-113
※100-120	100-121
※110-130	110-131
104-138	106-139（104-139）
130-165	132-166（130-166）
150-180	150-181
175-205	175-206
200-231	200-232
226-256	226-257
251-282	251-283
277-307	277-308

※ mark is the DIN size (DIN= Deutsche Industrial Standard). The material is SS or SUS304 only.

※ The value of ( ) means SUS316's.
