For anti-static, the ground wire built-in type is also available.

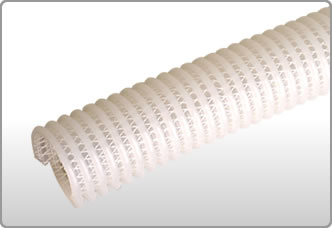

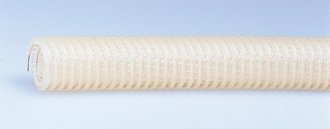

TOTAKU ECO LINE with a ground wire
This product is specially manufactured to order. For details,please inquire to us.
- For transportation of foodstuffs.
- ※No-suitable for transportation of oily foodstuffs or fluid
Conformed to “Food Sanitary Law, Notification of Ministry of Health , Labour and Welfare No.201”(Eexcept for dissolving test on oils and fats and fat-related food, Heptanes). - Can be washed by hot water ※1 or 95% ethanol, and keeps cleanliness
- Possible to incinerate after hose used. Noxious fume ※2 is not generated (Ratio of ashes burning out is less than 0.1%)
- Transparent wall enables visual check of the material flow.
- Flexibility enables labor-saving
- With reinforcing fiber, can withstand pressure Max.0.5Mpa (5.1kgf/cm2).
- Lightness enables the hose to float on water
- ※1.Conditions of Hot Water Washing : Temperature : 80°C or less,Pressure : 0.1MPa or less, Pressurization time : up to 3 minutes.
- ※2.Hydrogen chloride, SOx, NOx, Hydrogen cyanide, and Ammonia
- ■CAUTIONS
Please avoid the use and storage over the long period of time in the outdoors.
- For transportation of sake, liquor, soft-drinks, etc
- For transportation of other foodstuffs. (Liquid and powder conveying)
- For equipment piping of factory which acquires ISO14001
- For transportation of indoor washing water at atomic-energy power stations (Can burn out hoses after use, which can decrease volume)
- Additionally, for suction and delivery of general usage
- ※Please take a range of 0°C to 50°C as standard allowable temperature, subject to change of allowable pressure depending on use temperature. (In case of continuous use, 40°C or less is recommended.)
| Fluid | Water・hot water、Food、Chemical (including pure water） |
|---|---|
| Material | Non-PVC |
| Temperature | 0 ～ 50 |
| Function | ・Conforms to Ministry of Health,Labour and Welfare Notifications ・Abrasion resistant ・Excellent madical durability ・Having transparency (translucent) ・Low odor ・Can be incinerated by fire after use ・Pressure resistant 0.5MPa (5.1kgf/㎠) |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Pitch mm |
Weight (reference) g/m |
L/coil m |
Allowable pressure (at room temperature) MPa{kgf/cm2｝ |
Allowable bending radius mm |
|---|---|---|---|---|---|---|---|
| 25｛1｝ | 25.4 | 36.7 | 7.8 | 350 | 50 | 0.5｛5.1｝ | 120 |
| 32｛1¼｝ | 32.0 | 44.0 | 8.8 | 445 | 150 | ||
| 38｛1½｝ | 38.0 | 51.0 | 9.3 | 580 | 210 | ||
| 50｛2｝ | 50.8 | 65.2 | 10.2 | 800 | 240 | ||
| 65｛2½｝ | 63.5 | 80.5 | 14.0 | 1100 | 20・50 | 330 | |
| 75｛3｝ | 76.2 | 95.5 | 15.0 | 1530 | 390 |
- Cleansing with couplings removed became possible
- Reliable stopper structure.
- This resin-made coupling is as lightweight as one half of the weight of metal couplings.
- Allowable pressure of TOTAKU ECO LINE with which SHIMETAC is connected is equal to that of the hose only.
- Attaching and detaching work of the couplings on the job site is easy.
- It doesn't rust due to being made by the resin.
- Has a high durability.
- Nominal Dia. of 38, 50, 65, 75mm are available. (Note)PT Nipple made of the resin is available only in sizes of 38 and 50mm.
- S-Collar Nipple, M1 Nipple, Nipple with JIS10KF, Both Mouth Nipple (made of SUS) and Kamlok(made of SUS) are available.
| Nominal diameter |
T | W | H | Size of bolt |
|---|---|---|---|---|
| 38 | 85 | 58 | 66 | M8 |
| 50 | 104 | 63 | 81 | M8 |
| 65 | 120 | 77 | 94 | M8 |
| 75 | 135 | 88 | 108 | M8 |
(Unit:mm)
