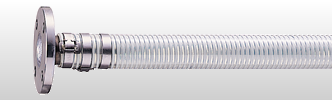

Example of coupling installation

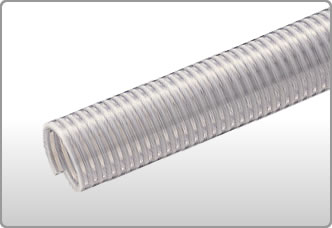

- Heat-resistant type of TOTAKU SD-F.
- Consists of excellent heat-proof material (Up to 80℃)
- Consists of plasticizer of a non-phthalic acid system,
- conforming to Notification of Ministry of Health, Labour and Welfare No.267 dated August 1st, 2003. (In the case of selling or using in violation of the above Notice, you can be sentenced to up to 6 months jail or be fined a penalty of up to three hundred thou - sand Japanese yen in Japan.)
- Can transport fat or fatty foodstuffs (Completely conform to Notification of Ministry of Health, Labour and Welfare No.201)
- For transportation of Sake, Liquor, Beer, and Soft-drinks
- Additionally, for transportation of other foodstuffs.
- For suction/delivery
- ※After using the hose, please make sure that no organic solvent such as high- concentration alcohol remains in the hose.
| Fluid | Water・hot water、Food、Oils |
|---|---|
| Material | PVC |
| Temperature | 30 ～ 80 |
| Function | ・Conforms to Ministry of Health,Labour and Welfare Notifications ・Oil resistant ・Low odor ・Having transparency ・Heat resistent |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Weight (reference) g/m |
L/coil m |
Allowable pressure （80℃） MPa｛kgf/cm2｝ |
Allowable bending radius mm |
|---|---|---|---|---|---|---|
| 25｛1｝ | 25.4 | 31.2 | 370 | 50 | 0.20｛2.0｝ | 350 |
| 32｛1¼｝ | 32.0 | 39.2 | 525 | 500 | ||
| 38｛1½｝ | 38.0 | 46.0 | 715 | 600 | ||
| 50｛2｝ | 50.8 | 61.0 | 1190 | 750 | ||
| 65｛2½｝ | 63.5 | 74.8 | 1650 | 20・50 | 1250 | |
| 75｛3｝ | 76.2 | 88.0 | 2020 | 1700 |
