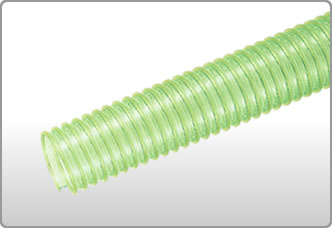

TOTAKU DUCT-AS

: Duct type of TOTAKU SD-AS.; With special formulation of soft PVC, the anti-static effect will last as shown in the under-mentioned table (Refer to Table 2 in P.39).

: For exhaust from room which dislikes static electricity, etc.; For dust collecting of woodwork machine.; For transportation of powder, etc.

Fluid	Water・hot water、Air (blower)、Powder・granule
Material	PVC
Temperature	-10 ～ 50
Function	・Duct (blower) ・High anti-static performance (with no ground wire) ・Having transparency

Nominal diameter	Inside Diameter mm	Outside Diameter mm	Pitch mm	Weight (reference) g/m	L/coil m	Allowable pressure (at room temperature) MPa{kgf/cm²｝	Allowable bending radius mm
32｛1¼｝	32.4	38.6	8.4	220	50	0.06｛0.6｝	32
38｛1½｝	37.3	44.5	9.2	295	50	0.06｛0.6｝	38
50｛2｝	50.6	60.2	10.0	560	30	0.05｛0.5｝	50
65｛2½｝	62.4	72.0	12.0	615		0.04｛0.4｝	65
※75｛3｝	76.4	86.4	13.0	775		0.04｛0.4｝	75
※◎90｛3½｝	88.9	100.1	13.5	945		0.03｛0.3｝	90
◎100｛4｝	101.6	112.2	15.0	1145		0.03｛0.3｝	100
125｛5｝	125.9	137.7	21.0	1350	20	0.02｛0.2｝	125
150｛6｝	152.4	164.8	20.0	1620	20	0.02｛0.2｝	150

The size of the mark ※ can be directly connected with a steel pipe.

The size of ◎mark will be built to order as a custom-made item.

■Mounting method

Please use Spiral wire band (ø32-ø150, P52) for installation.

For any more information, please inquire of us.
