PRODUCT INFORMATION

End cover for TOTAKU RIGID DUCT-PP

End cover for TOTAKU RIGID DUCT-PP Picture

(mm)

Nominal diameter	Ａ	Ｂ	Ｃ	Ｄ	Ｔ
55	55	65.4	20	18	1.5
65	65	75.4	20	18	1.5
75	75	85.4	20	18	1.5
90	90	100.4	20	18	1.5
100	100	110.4	20	18	1.5
125	125	135.4	20	18	1.5
150	150	160.4	20	18	1.5
175	175	185.4	20	18	1.5
200	200	213.0	33	32	2.2
250	250	263.0	31	26	1.5
300	300	313.0	33	31	1.5

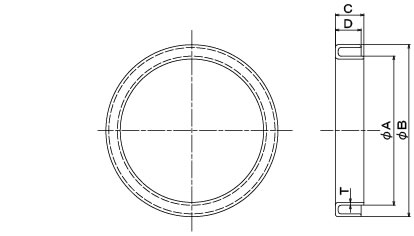

End cover for TOTAKU RIGID DUCT-PP Structural drawing
