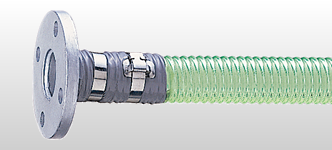

Example of coupling installation

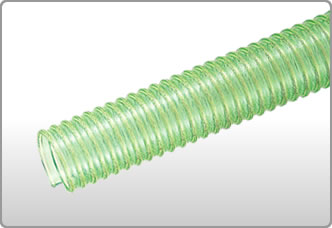

- With special formulation of soft-PVC, the anti-static effect will last as shown in the under-mentioned table. (ref. Table 2)
- Transparent wall (clear green) enables visual check of the material flow.
- For transportation of plastic pellets, especially good for Nylon/ABS, etc which require pre-drying.
- Additionally, for transportation of pellets/powder (except foodstuffs)
| Fluid | Water・hot water、Powder・granule |
|---|---|
| Material | PVC |
| Temperature | -10 ～ 50 |
| Function | ・High anti-static performance
(with no ground wire)
・Having transparency ・With special formulation of soft-PVC, excellent in anti-static performance ・Highly flexible due to corrugated outer surface (inner surface is flat and smooth) |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Pitch mm |
Weight (reference) g/m |
L/coil m |
Allowable pressure (at room temperature) MPa{kgf/cm2｝ |
Allowable bending radius mm |
|---|---|---|---|---|---|---|---|
| 25｛1｝ | 25.4 | 30.8 | 7.5 | 200 | 50 | 0.20｛2.0｝ | 70 |
| 32｛1¼｝ | 32.0 | 38.2 | 8.5 | 255 | 0.15｛1.5｝ | 80 | |
| 38｛1½｝ | 38.0 | 44.6 | 9.0 | 385 | 90 | ||
| 50｛2｝ | 50.8 | 58.0 | 10.0 | 540 | 0.10｛1.0｝ | 150 | |
| 65｛2½｝ | 63.5 | 73.0 | 14.3 | 810 | 20･50 | 180 | |
| ※75｛3｝ | 76.2 | 87.5 | 15.1 | 1125 | 210 | ||
| ※100｛4｝ | 101.6 | 115.0 | 16.4 | 1965 | 300 | ||
| 125｛5｝ | 125.9 | 141.6 | 22.0 | 2520 | 20 | 350 | |
| 150｛6｝ | 152.4 | 172.0 | 22.0 | 4530 | 0.15｛1.5｝ | 675 |
The size of the mark ※ can be directly connected with a steel pipe.
| Nipple for hoses |
|---|
| Bands & Swaging |
