Alloy of aluminum

(mm)

Nominal diameter	Ａ	Ｂ	Ｃ	Ｌ
38	38.2	31.0	72	126
50	51.0	43.0	83	143
65	63.5	55.0	90	154
75	76.6	67.0	104	168
100	101.6	92.0	113	183
125	127.0	117.0	136	205
150	151.8	142.0	143	221



SUS316

(mm)

Nominal diameter	Ａ	Ｂ	Ｃ	Ｌ
38	38.2	31	87	159
50	51.0	43	98	174
65	63.5	55	105	188
75	76.6	67	120	203
100	101.6	92	128	219

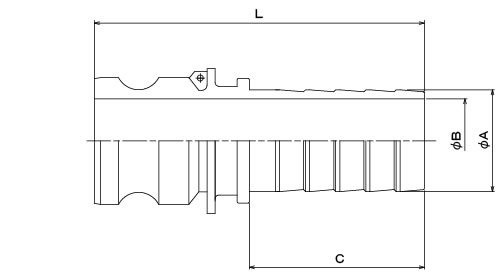

Alloy of aluminum

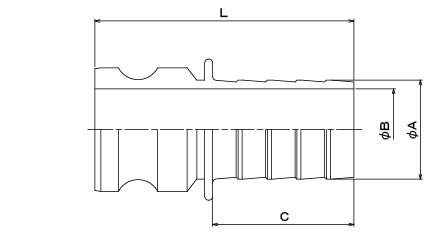

SUS316
