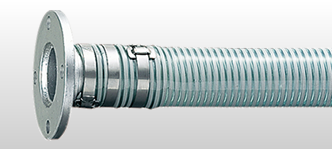

Example of coupling installation

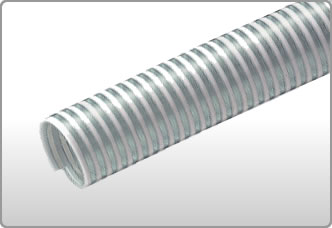

- The light weight type of the TOTAKU SD-C.
- For suction/delivery, more suitable for delivery usage.
- For suction/delivery for Agriculture and Industry and
- Construction of engineering.
| Fluid | Water・hot water |
|---|---|
| Material | PVC |
| Temperature | -10 ～ 50 |
| Function | ・Having transparency
・Pressure resistant 0.5MPa (5.1kgf/㎠) ≪φ25, φ32≫ |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Weight (reference) g/m |
L/coil m |
Allowable pressure (at room temperature) MPa{kgf/cm2｝ |
Allowable bending radius mm |
|---|---|---|---|---|---|---|
| 25｛1｝ | 25.4 | 30.6 | 280 | 50 | 0.60｛6.1｝ | 275 |
| 32｛1¼｝ | 32.0 | 37.6 | 390 | 0.50｛5.1｝ | 375 | |
| 38｛1½｝ | 38.0 | 44.0 | 485 | 0.40｛4.1｝ | 475 | |
| 50｛2｝ | 50.8 | 58.5 | 825 | 0.35｛3.6｝ | 610 | |
| 65｛2½｝ | 63.5 | 72.6 | 1195 | 20・50 | 800 | |
| ※75｛3｝ | 76.2 | 85.5 | 1470 | 1360 | ||
| ※100｛4｝ | 101.6 | 113.0 | 2530 | 20 | 0.30｛3.1｝ | 1450 |
| 125｛5｝ | 127.0 | 139.0 | 3300 | 2500 | ||
| 150｛6｝ | 152.4 | 166.0 | 4360 | 0.25｛2.5｝ | 2900 | |
| 200｛8｝ | 203.2 | 221.2 | 7610 | 10 | 0.20｛2.0｝ | 3000 |
Sizes with the ※ mark can be directly to steel pipes.
| Nipple for hoses |
|---|
| Bands & Swaging |
