Nominal

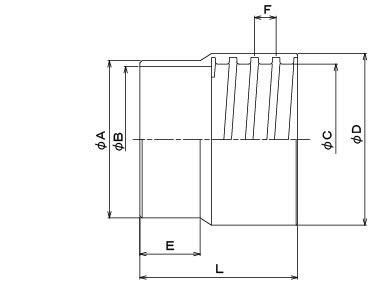

diameter | Ａ | Ｂ | Ｃ | Ｄ | Ｅ | Ｆ | Ｌ |
| 38 | 43 | 38 | 40.5 | 52.0 | 30 | 9.5 | 75 |
| 50 | 56 | 51 | 53.6 | 66.3 | 23 | 10.0 | 81 |
| 65 | 69 | 63 | 65.4 | 78.1 | 31 | 12.0 | 87 |
| 75 | 84 | 77 | 79.8 | 92.5 | 38 | 13.0 | 98 |
| 90 | 97 | 89 | 92.3 | 105.8 | 46 | 13.5 | 107 |
| 100 | 110 | 102 | 105.0 | 118.3 | 43 | 15.0 | 111 |
| 125 | 134 | 126 | 129.3 | 144.8 | 52 | 21.0 | 146 |
| 150 | 161 | 153 | 155.8 | 172.3 | 78 | 20.0 | 162 |
| 200 | 214 | 204 | 207.1 | 223.6 | 112 | 22.5 | 235 |
