Lorry coupling

Lorry coupling Picture

(mm)

Nominal diameter	φＤ１	φＤ２	Ａ	Ｂ	Ｃ	Ｔ	Ｌ１	Ｌ２
50	45	52	80	18	27	29	126	83
65	56	64	80	20	30	30	128	90
75	69	77	85	22	30	30	137	100

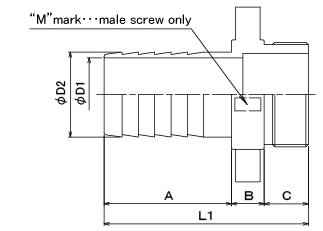

Lorry coupling Structural drawing1

Lorry coupling Structural drawing2
