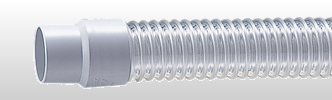

Example of caffs inatallation
(It doesn't keep completely airtight and watertight）

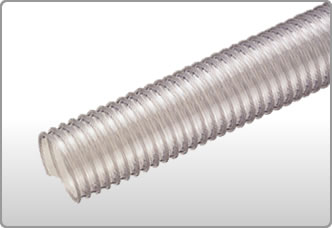

- Confirmation can do the contents of a transportation thing by the clear type of TOTAKU DUCT-EE.
- For dust collection of woodworking machine.
- For transportation of powder, granule and gas.
- For exhausts and air supplying of an interior and factory equipment
- Other, when confirmation of a transportation thing is needed.
■Installation cuffs: made of the Soft-PVC
| Fluid | Water・hot water、Air (blower) |
|---|---|
| Material | PVC |
| Temperature | -10 ～ 50 |
| Function | ･Duct (blower) ･Having transparency |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Pitch mm |
Weight (reference) g/m |
L/coil m |
Allowable pressure (at room temperature) MPa{kgf/cm2｝ |
Allowable decompression
power （at room temperature） kPa{mmHg} |
Allowable bending radius mm |
|---|---|---|---|---|---|---|---|---|
| 32｛1¼｝ | 32.4 | 38.6 | 8.4 | 220 | 50 | 0.06｛0.6｝ | -66.0｛-495｝ | 32 |
| 38｛1½｝ | 37.3 | 44.5 | 9.2 | 295 | 38 | |||
| 50｛2｝ | 50.6 | 60.2 | 10.0 | 585 | 30 | 0.05｛0.5｝ | 50 | |
| 65｛2½｝ | 62.4 | 72.0 | 12.0 | 645 | 0.04｛0.4｝ | 65 | ||
| ※75｛3｝ | 76.4 | 86.4 | 13.0 | 755 | -33.0｛-248｝ | 75 | ||
| ※◎90｛3½｝ | 88.9 | 99.5 | 13.5 | 950 | 0.03｛0.3｝ | 90 | ||
| ※100｛4｝ | 101.6 | 112.2 | 15.0 | 1020 | -21.5｛-161｝ | 100 | ||
| 125｛5｝ | 125.9 | 138.7 | 21.0 | 1350 | 20 | 0.02｛0.2｝ | -20.0｛-150｝ | 125 |
| 150｛6｝ | 152.4 | 164.8 | 20.0 | 1670 | -14.5｛-109｝ | 150 | ||
| 200｛8｝ | 203.7 | 217.1 | 22.5 | 2190 | 0.01｛0.1｝ | -6.0｛-45｝ | 200 |
･Sizes marked ※ can be connected to steel pipes.
･Sizes marked ◎ will be built to order as custom-made items.
For details, please inquire to us.
