Nominal

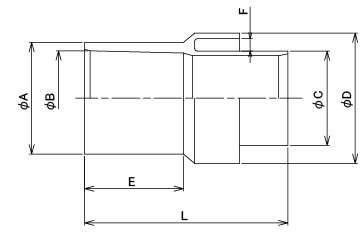

diameter | Ａ | Ｂ | Ｃ | Ｄ | Ｅ | Ｆ | Ｌ | Weight for reference |
| 25 | 30 | 25 | 25 | 36.5 | 27 | 3.8 | 55 | 21 |
| 32 | 37.5 | 32 | 31.7 | 45 | 35 | 4.2 | 72 | 40 |
| 38 | 44 | 38 | 38 | 55.5 | 39 | 6.3 | 84 | 60 |
| 50 | 59.8 | 50.8 | 50.6 | 69.8 | 53 | 6.6 | 109 | 126 |
| 65 | 73.5 | 63.5 | 63 | 83.5 | 70 | 7.3 | 144 | 241 |
| 75 | 88.2 | 76.2 | 76.3 | 100.5 | 81 | 8.8 | 168 | 401 |
| 100 | 114.6 | 101.6 | 101.5 | 132.5 | 105 | 11.8 | 215 | 711 |
